10crmo9-10 Steel Plate 10crmo9-10 Hot Rolled Steel Sheet 10crmo9-10 Hot Rolled Steel Plates

Name: 10crmo910 Steel Plate 10crmo910 Hot Rolled Steel Sheet 10crmo910 Hot Rolled Steel Plates
Brand: Gnee
Price: 680 USD

Quality 10crmo9-10 Steel Plate 10crmo9-10 Hot Rolled Steel Sheet 10crmo9-10 Hot Rolled Steel Plates for sale

Brand Name : Gnee

Model Number : According to customer requirements

Certification : SGS

Place of Origin : Tianjin, China

MOQ : 1 Ton/Tons

Price : $680 / Ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 800 Ton/Tons per Week

Packaging Details : Properly packed for ocean freight exportation in containers 1. Bundle 2. Water-proof Draft Paper

Standard : ASTM, bs, DIN, GB, JIS

Grade : 10CrMo9-10

Type : Steel plate/sheet/coil, Steel Plate

Technique : Cold rolled/Hot rolled

Surface Treatment : Coated

Application : Mechanical equipment, industry, metallurgy

Special Use : carbon steel plate, High-strength steel plate

Width : According to requirements

Length : According to requirements

Tolerance : ±1%, Thickness+/-0.01mm

Product Name : carbon steel sheet

Contact Now

10crmo9-10 Steel Plate 10crmo9-10 Hot Rolled Steel Sheet 10crmo9-10 Hot Rolled Steel Plates

Products	Hot rolled mild steel plate
Thickness	0.12mm-60mm
Length	1000-12000mm
Width	600mm-1250mm
Delivery time	20 days after receiving LC or deposit.
Payment terms	L/C,D/A,D/P,T/T,Western Union
Supply ablitity	10000 Metric Ton/Metric Tons per Month
MOQ	1 Metric Ton/Metric Tons
Application	Mechanical&manufacture,Steel structure,Shipbuilding,Bridging

EN 1.7380 (10CrMo9-10) Chromium-Molybdenum Steel EN 1.7380 steel is an alloy steel formulated for primary forming into wrought products. 1.7380 is the EN numeric designation for this material. 10CrMo9-10 is the EN chemical designation. It has a moderately high density among EN wrought alloy steels.

EN 10273: 2007 Hot rolled weldable steel bars for pressure purposes with specified elevated temperature properties

EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements

Grade :	10CrMo9-10
Number:	1.7380
Classification:	Alloy special steel
Density:	7.85 g/cm ³

10CrMo9-10 Chemical Composition Max (%)

Grade	C	Si	Mn	P	S	Al(min)	N
10CrMo9-10	0.08-0.14	0.50	0.4-0.80	0.020	0.010		0.012
	Cr	Cu	Mo	Nb	Ni	Ti	V
	2.0-2.50	0.30	0.90-1.10

10CrMo9-10 Mechanical Property

Grade	Thickness	Yield	Tensilmie	Elongation	Impact Energy(KV J) min
10CrMo9-10	mm	Min Mpa	Mpa	Min %	-20°	0°	+20°
	≤ 16	310	480-630	18	f	f	31
	16> to ≤40	300	480-630	18	f	f	31
	40> to ≤60	290	480-630	17	f	f	27
	60> to ≤100	280	470-620	17	f	f	27
	100> to ≤150	260	460-610	17	f	f	27
	150> to ≤250	250	450-600	17	f	f	27

10crmo9-10 Steel Plate 10crmo9-10 Hot Rolled Steel Sheet 10crmo9-10 Hot Rolled Steel Plates

FAQ:

Q: How to get quotation?

A: When we receive your detailed enquiry, we will set the best price based on standard, steel grade, outer diameter, wall thickness, quantity, country. And we will send quotation to your mailbox.

Q: What is necessary information?

A: In order to get accurate quotation, the standard, material, outer diameter, wall thickness, quantity, destination port are necessary informations.

Q: What is payment terms?

A: FOB 30% T/T IN ADVANCE AS DEPOSIT AND 70% T/T BEFORE SHIPMENT

CIF and CFR 30% T/T IN ADVANCE AS DEPOSIT AND 70% T/T AS THE COPY OF B/L OR L/C AT SIGHT

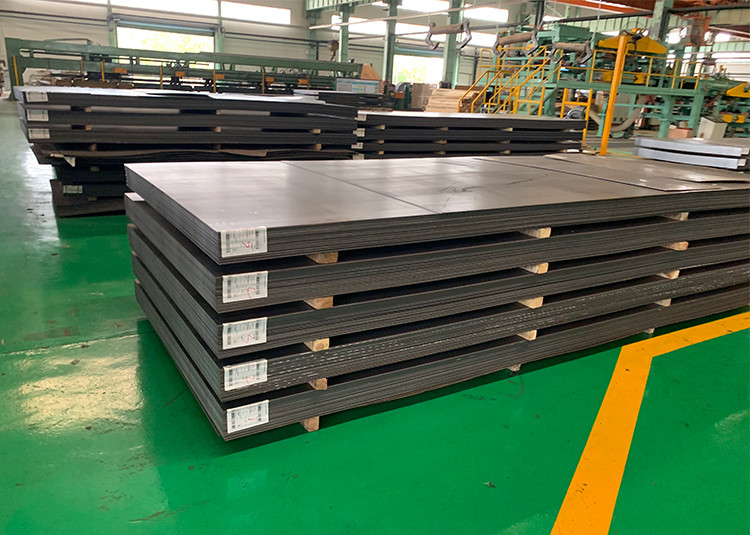

10crmo9-10 Steel Plate 10crmo9-10 Hot Rolled Steel Sheet 10crmo9-10 Hot Rolled Steel Plates Images
